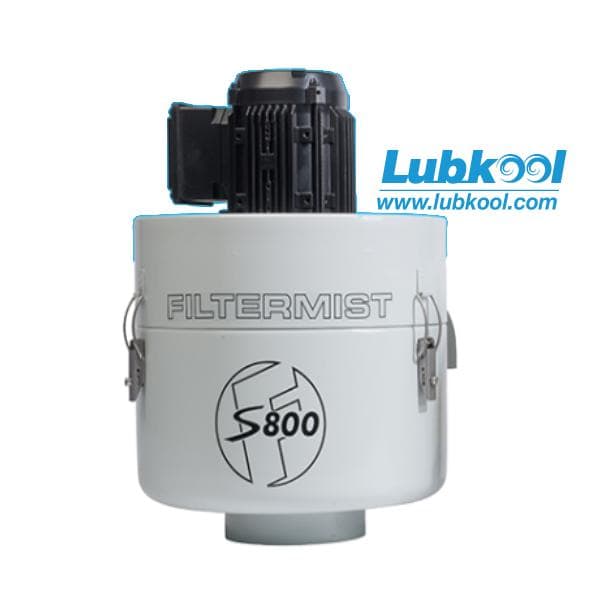

Máy thu hơi dầu Filtermist S800 S400 S200 Oilmist Collector

    Máy thu hơi dầu Filtermist S800 S400 S200 Oilmist Collector

    Multiple Mounting Options

    Filtermist’s S Series oil mist collectors are compact, lightweight and designed to be directly mounted onto machine tools. They can also be fitted using floor stands and machine mounting brackets.

    Energy Efficient Oil Mist Extraction

    Fitted with either 0.18kW or 0.55kW motors, S Series oil mist collector units are low energy users.

    Stainless Steel

    Filtermist FX and S series oil mist collectors are available in standard mild steel construction and also stainless steel versions for use in hazardous or corrosive environments.

    Mã: 1261-10000 Danh mục: , Từ khóa:

    Tech Data

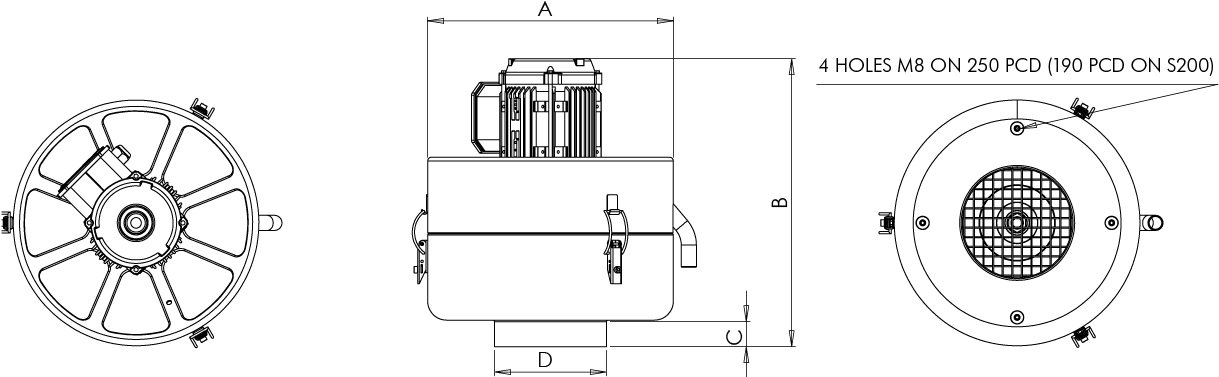

    S Series GA Drawing

    Model Airflowm3/hr Motor 1 Amm Bmm Cmm Dmm Weightkg Noise 2dBA
    S200 180 @ 50Hz
    215 @ 60Hz    		 0.18kW 50Hz
    200v, 220v, 380v, 400v    		 0.18kW 60Hz
    200v, 220v, 230v, 440v, 460v, 480v    		 260 302 30 73 9 62
    S400 425 @ 50Hz
    500 @ 60Hz    		 0.55kW 50Hz
    200v, 220v, 380v, 400v    		 0.55kW 60Hz
    200v, 220v, 230v, 440v, 460v, 480v    		 325 381 35 148 14 65
    S800 800 @ 50Hz
    950 @ 60HZ    		 0.55kW 50Hz
    200v, 220v, 380v, 400v    		 0.55kW 60Hz
    200v, 220v, 230v, 440v, 460v, 480v    		 325 435 35 148 15 67

    Bạn cần hỗ trợ về s.phẩm?

    Call 024-6687-2330

    • Motors to be used on specified voltages only.

    • Results are in test conditions ± 3% tolerance. Local variations and in use conditions may affect readings.
